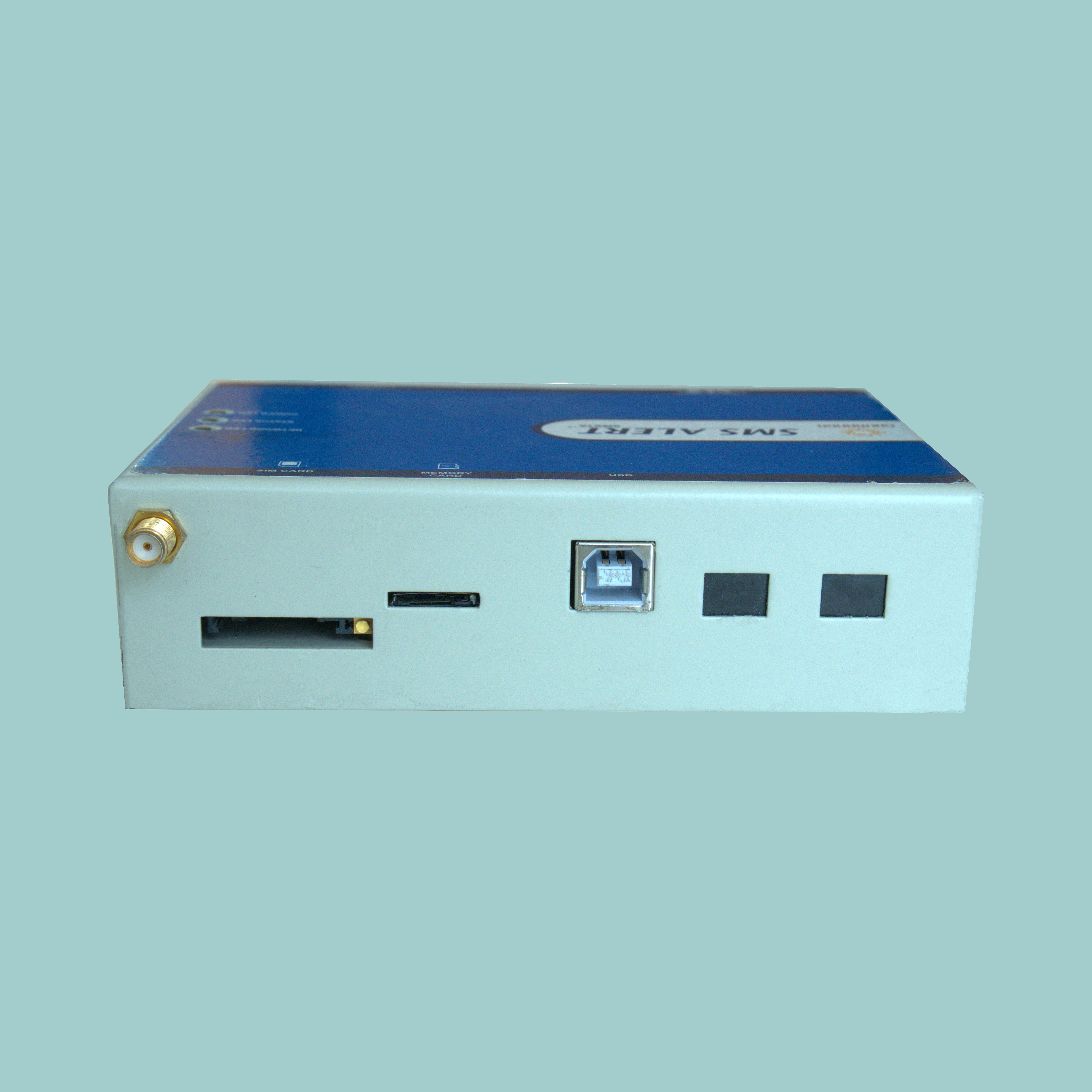

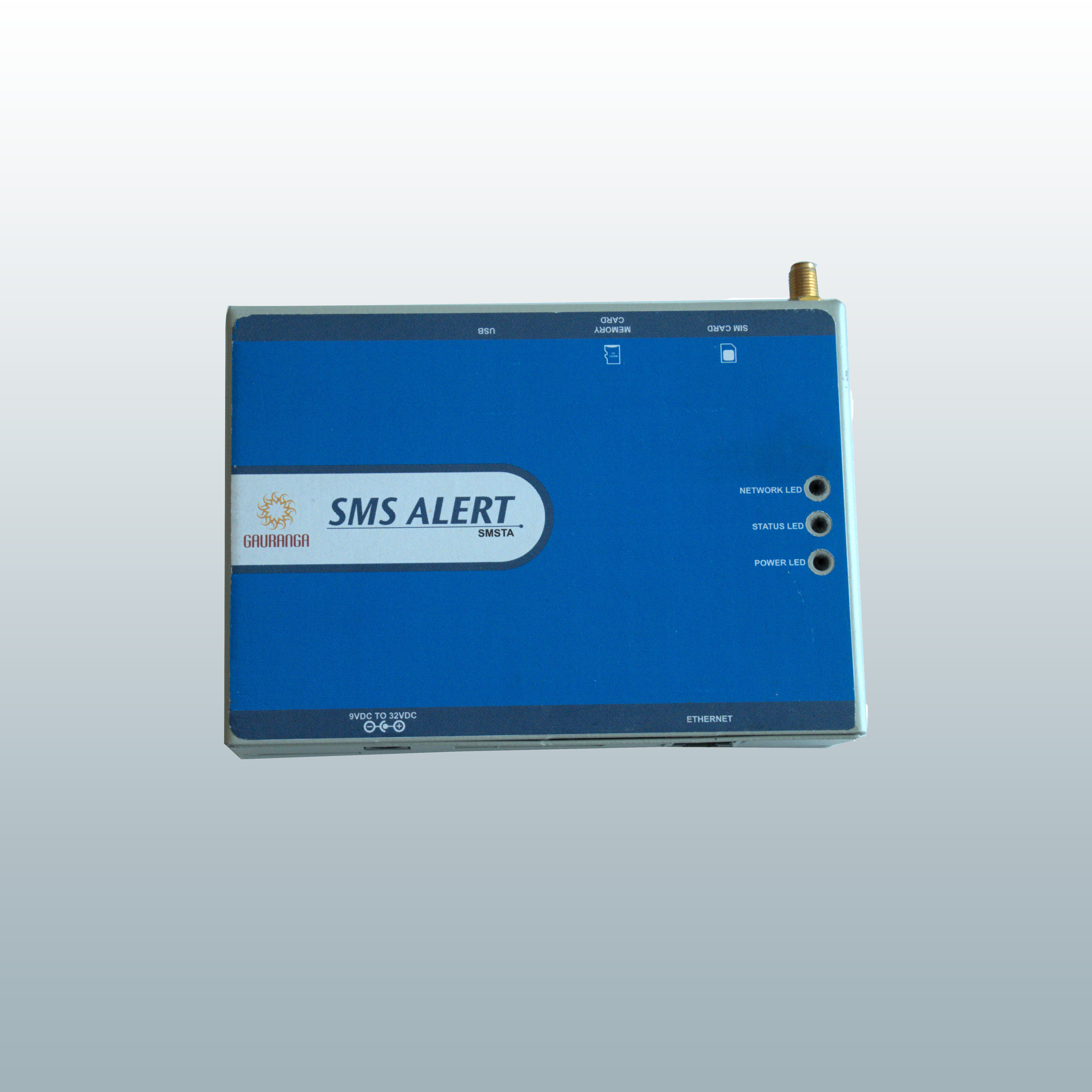

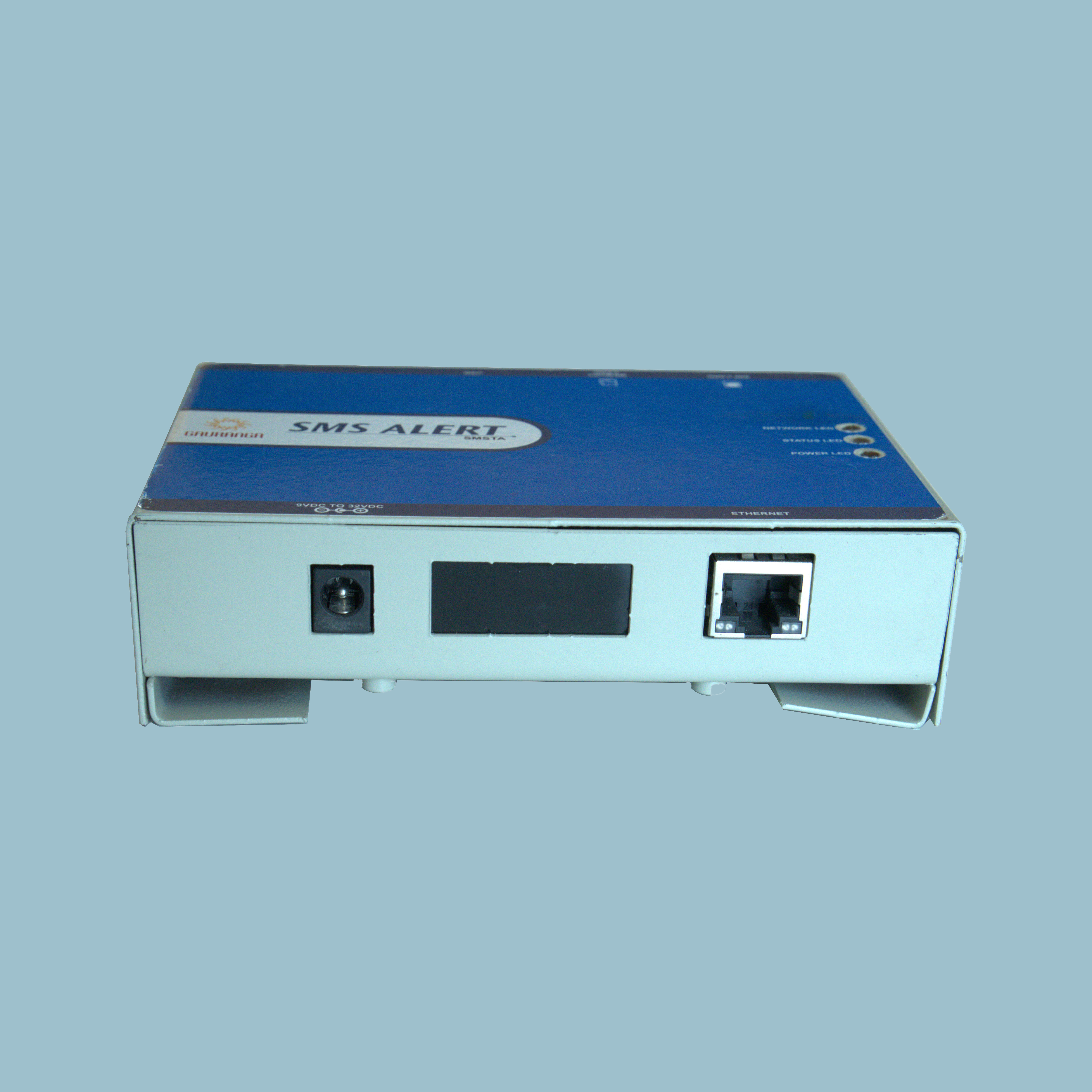

Modbus SMS Alert (SMSTA)

Astute Messaging

Introduction

SMS Alert Module sends out alerts to industrial automation, building automation, fire safety, and similar applications, where the timely alert to multiple people is important. SMS alert module has a standard Modbus TCP/IP interface which makes it compatible with most of SCADAs and PLCs etc. Based on the alarm, it sends pre-configured SMS text to pre-configured mobile numbers. In this way even when the user is far off he can get to know the system’s alarm and take preventive measures by connecting to the control room. By this user can have control of the system even from a remote location.

Applications

Industrial Automation

Building Automation

Fire safety panels

Internet-based control operations

General Alarm Notification

Benefits

Instant SMS to user

Sends SMS to multiple users

Alert the user irrespective of their location

Remote alerts to users and senior managers for timely intervention

Easy and simple to integrate

Less power consumption

Features

Modbus TCP/Ip trigger-based SMS alert.

Configurable SMS string from SD Card.

Firmware update feature for future up-gradation.

Alerts to multiple mobile numbers.

Timely indication of alarms irrespective of user locations.

Register for signal strength.

Configurable up to 100 SMS

Specifications

Power Supply – 9-32 VDC or 230 VAC external power adapter

Interface – 10/100 MB base ethernet

Network Recovery – USB Port

Protocol Supported – Modbus TCP/IP Slave

Storage – Micro SD card 4GB

Configuration – Web-based

GSM Module – GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz

Maximum Mobile numbers per alert – 10

SMS Messages – 1000+

Operating Temperature – -20 to +70 degree celsius (subjected to MicroSD card temperature)
